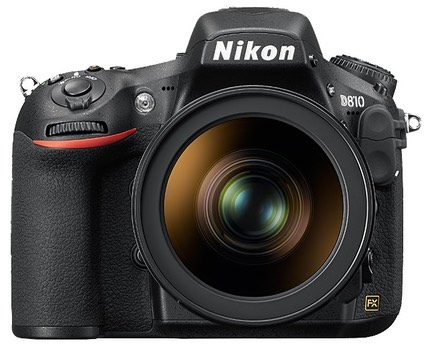

Nikon D810 & D810A Specifications

  • Introduced: 6/26/2014
  • Replacement Estimate: 2016?
  • Current Firmware: C1.11 (April 2016); D810A: C1.01 (April 2016)
  • Sensor Size: 35.9x24mm, FX (full film frame)
  • Sensor Pixels: 36.3mp full, 30.18mp @ 5:4, 25.07mp @ 1.2x, 15.36mp @ DX
  • Sensor Manufacturer: Sony IMX094AQP?
  • Sensor Technology: CMOS
  • Sensor Filtration: Bayer, no antialias filter, microlens; D810A: H-alpha sensitive filtering
  • Max Image Size: 7360x4912
  • Other Image Sizes: 5520x3680, 3680x2456, 1.2x Crop: 6144x4080, 4608x3056, 3072x2040, 5:4 Crop: 6144x4912, 4608x3680, 3072x2456, DX Crop: 4800x3200, 3600x2400, 2400x1600
  • Video: 1080P/60/50/30/25/24, 720P/60/50/30/25 (stored in .MOV with H.264 compression); mono sound from built in mic, stereo from jack (20 levels), clean HDMI output (with compressed recorded internally), headphone monitoring
  • ADC Bit Depth: 12 or 14 bit
  • Raw File Formats: 12 or 14 bit Uncompressed, Lossless compressed,Compressed NEF
  • Other File Formats: JPEG, TIFF
  • JPEG/TIFF Rendering: 16-bit rendering, 8-bit output
  • Auto Rotation: Yes
  • Color Spaces: sRGB, Adobe RGB
  • Storage: CF Type I only, UDMA-7 support, second SD slot (SD/SDHC/SDXC, UHS-I and Eye-Fi)
  • Max Write Speed: 45MB/sec+
  • Max Buffer Size: 100 JPEG, 23 14-bit NEF
  • Connectivity: USB 3.0
  • TV Support: HDMI
  • Lens Support w/metering: all AF, AI-P, AI and AI-S
  • Autofocus Module: CAM3500FX (51 sensor, 15 crosshatch) supports -2 EV focus, f/8 autofocus (with sensor limitations)
  • Shutter Lag: 35ms
  • Autofocus Modes: Single, Dynamic (9, 21, 51 pt, and 3D tracking), Automatic Area, Face Detect
  • AF Assist: Yes (white lamp)
  • Metering: 91,000-pixel Color matrix with shape/scene recognition, highlight preservation, center-weight (variable), spot
  • Exposure Modes: PSAM; D810A: PSAM plus M* (long exposure manual)
  • Exposure Compensation: +/- 5 stops, 1/3, 1/2, 1 stop
  • Exposure Bracketing: Yes, 2-9 frames (plus ADL, WB bracketing)
  • ISO: 64-12800, LO1, HI1, HI2, AUTO; D810A: 200-12800, LO1, HI1, HI2, AUTO
  • White Balance: Auto, bracketed, custom (3), 6 predefined with fine tuning, direct Kelvin, two axis tuning
  • Image Settings: Picture Controls (including Flat), Sharpening, Contrast, Saturation, Brightness, Hue
  • Color LCD: 3.2" TFT, 1.3m dots, 170 degree
  • Image Review: Histogram (RGB), Histogram, Focus Pt, Highlights
  • Continuous Shooting Speed: 5fps (6 fps 1.2x crop and DX, DX 7 fps with MB-D12)
  • Shutter Speeds: 30s to 1/8000, bulb, 200k rated; D810A: 900s to 1/8000, bulb, time
  • Mirror Lockup: Delay, M-UP
  • Viewfinder: Pentaprism, 100%, 0.7x magnification, 17mm eyepoint, -3 to +1 diopters, eyepiece shutter , opt gridlines
  • Optional Viewfinder Accessories: DG-2 magnifier, DK-14/17A antifog, DK-19 rubber cup, DK17m magnifier, DR-5 right angle, DK-18 adapter, DK17c diopter correction
  • Optional Focus Screens: Brightscreen
  • Menus: Playback, Shooting, Custom Settings, Setup, Retouch, MyMenu
  • Flash Sync Speed: 1/250, 1/320 with reduced power internal flash, TTL FP
  • Flash Type: supports I-TTL, M, Double Commander
  • Internal Flash: Yes GN 39ft 12m (ISO 100)
  • PC Sync: Yes
  • Flash Compensation: -3 to +1EV
  • Flash Options: Red Eye, Slow Sync, Rear Sync, Flash Lock, Three Group Commander Mode
  • DOF Preview: Yes
  • Optional Remote Control: 10-pin remotes supported, WR-R10/WR-T10 with WR-A10
  • Size: 5.8 x 4.9 x 3.3" (146x123x81.5mm)
  • Weight w/o battery: 31.1 ounces (880g)
  • Battery: EN-EL15 (1200 shots CIPA)
  • AC Adapter: EP-5b + EH-5a/b
  • Other Significant: Self-cleaning sensor, DX Crop, autofocus calibration, active D-Lighting, chromatic aberration control, PictBridge, optional MB-D12 vertical release (supports EN-EL15, AA, or EN-EL18), live view with autofocus, FUNC button, horizontal indicator, wireless transfer option (WT-4), multiple exposure, interval shooting up to 9999 images, FUNC button, 4 shooting banks, 4 custom banks, GPS support; D810A: live view preview for 30s or longer exposures; NR optimized for long exposures
  • Software: View NX2, Capture NX-D
  • Price at Introduction: US$3300 D810 body only, US$3800 body only
