Nikon D5300 Specifications

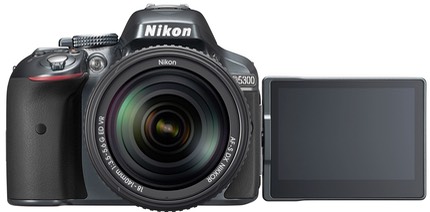

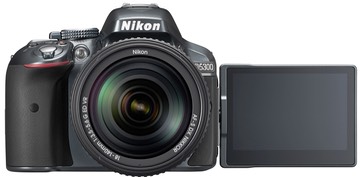

D5300 GR 18 140 LCD.high.jpg
  • Introduced: 10/17/2013
  • Replacement: current equivalent: D5600
  • Current Firmware: C1.02 L2.016 (Agust 2016)
  • Sensor Size: 23.5x15.6mm, DX ~1.53x crop
  • Sensor Pixels: 24.2mp
  • Sensor Manufacturer: Sony (Toshiba) IMX193AQK
  • Sensor Technology: CMOS, Bayer, no AA filter, microlens
  • Max Image Size: 6000x4000
  • Other Image Sizes: 4496x3000, 2992x2000
  • Video: 1080P 60/50/30/25/24, 720P 60/50/30/25, and VGA 30/25 (stored in .MOV with H.264 compression); stereo sound from built-in mic, or accessory jack
  • ADC Bit Depth: 14 bit
  • Raw File Formats: 14 bit Compressed NEF
  • Other File Formats: JPEG
  • JPEG/TIFF Rendering: 16-bit rendering, 8-bit output
  • Auto Rotation: Yes
  • Color Spaces: sRGB, Adobe RGB
  • Storage: SD, SDHC, or SDXC, UHS-I and Eye-Fi
  • Max Write Speed: ?MB/sec
  • Max Buffer Size: 35 JPEG Fine (100 @ any other JPEG setting), 8 RAW (6 with JPEG)
  • Connectivity: USB 2.0 HIGH, Optional WiFi
  • TV Support: NTSC and PAL, HDMI
  • Lens Support: AF-S only (other AF don't focus)
  • Autofocus Module: CAM4800DX (39 sensor, 9 crosshatch)
  • Shutter Lag: ?ms
  • Autofocus Modes: Single, Dynamic, Auto Area, 3D Tracking
  • AF Assist: Yes (white lamp)
  • Metering: 2016-pixel Color matrix, centerweight, spot
  • Exposure Modes: PSAM + 8 Scene
  • Exposure Compensation: +/- 5 stops, 1/3 stop or 1/2 stop
  • Exposure Bracketing: Yes, 3 frames (plus ADL, WB bracketing), 2-frame HDR
  • ISO: 200-12800, HI1, AUTO
  • White Balance: Auto, custom, 6 predefined with fine tuning
  • Image Settings: Picture Controls, Sharpening, Contrast, Saturation, Brightness, Hue
  • Color LCD: positionable 3.2", 1.04m dots, 180 degree, 1000:1 contrast
  • Image Review: Histogram (RGB), Highlights
  • Continuous Shooting Speed: 5 fps
  • Shutter Speeds: 30s to 1/4000, bulb. 100k rated
  • Mirror Lockup: Mirror Delay
  • Viewfinder: Pentamirror, 95%, 0.82x magnification, 18mm eyepoint, -1.7 to +1 diopters
  • Optional Viewfinder Accessories: DR-6 right angle, -5 to +3 diopter corrections, DG-2 magnifier
  • Optional Focus Screens: ?
  • Menus: Playback, Shooting, Custom Settings, Setup, Retouch, MyMenu
  • Flash Sync Speed: 1/200
  • Flash Type: I-TTL, M
  • Internal Flash: Yes GN 39 ft 12m (ISO 100) (slightly higher in manual mode)
  • PC Sync: No (via optional AS-15)
  • Flash Compensation: -3 to +1EV
  • Flash Options: Red Eye, Slow Sync, Rear Sync, Flash Lock
  • DOF Preview: No (alternative: use Live View)
  • Optional Remotes: ML-L3 IR (back and front), MC-D2 wired remote, WR-R10/WR-T10
  • Size: 4.9 x 3.9 x 3 " (125x98x76mm)
  • Weight: 16.9 ounces (480g)
  • Battery: EN-EL14 (600 shots CIPA)
  • Optional AC Adapter: EP-5a + EH-5a/b
  • Other Significant: Self-cleaning sensor, no top LCD (rear color LCD used instead), PictBridge, in camera small picture option, layered images, in-camera editing and trimming, in camera B&W and color filtration, in-camera D-Lighting, in-camera perspective control, color outline, soft filters, FUNC button, can mount non-AI lenses without damage, RAW to JPEG in camera conversion, built-in GPS, quiet shooting mode, built-in WiFi
  • Included Software: ViewNX2
  • Price at Introduction: US$799 body, US$1400 (with 18-140mmlens)

Thoms' full review of the D5300

Thom does not plan to write a book on the D5300.

Thom's quick takes:

  • Still relatively low price with high image quality
  • Solid video capability
  • Mostly plastic
  • Must use AF-S lenses!
  • Swivel LCD is handy and nice
  • Built-in GPS and WiFi a plus for those that use it
